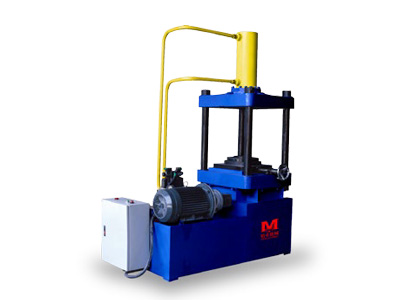

Die Presser
This machine adopts hydraulic drive. It is mainly used for the ejection and removal of the residual in the dies after the extrusion completed.
Service line

400-1088-778 / 0757-85588578

Main Features:

  • Stable operation, high nominal pressure, small in size, and flexible control and adjustment.
  • The residual material of different specifications and sectional dies can be pushed out by changing the different sizes of modules and punching needles.


Main Technical Parameters

Mode
 JYRD300
 JYRD400
 JYRD600
 JYRD1200
Type
 Vertical
 Vertical
 Vertical
  Horizontal
Nominal Pressure
 300 kN
 400 kN
 600 kN
 1200 kN
Diameter of Die
 ≤ Φ350 mm
 Φ350 ～ Φ450 mm
 Φ450 ～ Φ600 mm
 Φ550 ～ Φ1250 mm
Piercing Mandrel Size
 ≤ Φ30 mm
 Φ25 ～ Φ40 mm
 Φ35 ～ Φ50 mm
 Φ60 ～ Φ100mm
Systemic Operating Pressure
 16 MPa
 16 MPa
 20 MPa
 25 MPa
Operational Ability
 120 pcs/hour
 80 pcs/hour
 60 pcs/hour
 20 件 pcs/hour
Total Power
 7.5 kW
 11 kW
 15 kW
 25 kW
Voltage
 380 V
 380 V
 380 V
 380 V
Dimension (L*W*H)
 1400 × 800 × 2200
 1600 × 1000 × 2300
 1600 × 1200 × 2500
 2200 × 2200 × 3000
Weight
 1200 kg Approx.
 1500 kg Aprox.
 3000 kg Aprox.
 15000 kg Approx.

NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
